Aprilia AF1 125 RS 125/250
Make Model
Aprilia AF1 125
Year
1987
Engine
Liquid cooled, two stroke, single cylinder
Capacity
123
Bore x Stroke 54 x 54.5mm
Compression Ratio 15.5:1
Induction
28mm Dell'Orto carb
Ignition / Starting
Max Power
25.1 kg @10000 rpm
Max Torque
1.8 kg-m @ 8000 rpm
Transmission / Drive
6 Speed / chain
Front Suspension
Telescopic. 4-way anti-drive adjustable
Rear Suspension
Sebac monoshock
Front Brakes
Single 260mm disc
Rear Brakes
Single 240mm disc
Front Tyre
100/80-16
Rear Tyre
120/80-16
Dry-Weight / Wet-Weight
120 kg / 134.6 kg
Fuel Capacity
22.5 litres
Consumption average
22.7 km/lit
Braking 60 - 0 / 100 - 0
12.8 m / 39.9 m
Standing ¼ Mile
15.9 sec / 129.3 km/h
Top Speed
156.6 km/h
Make Model
Aprilia AF1 125 Futura
Year
1990
Engine
Liquid cooled, two stroke, single cylinder Light alloy and barrel with GILNISIL surface coating
Capacity
124.7
Bore x Stroke 54 x 54.5 mm
Compression Ratio 13.6:1
Induction
34mm Dell'Orto flat slide carb
Ignition / Starting
Electronic / electric
Max Power
27 hp @ 8800 rpm
Max Torque
2.0 kg-m @ 10000 rpm
Transmission / Drive
6 Speed / chain
Front Suspension
38mm upside down fork
Rear Suspension
Aprilia Progressive System with hydraulic single shock-absorber, 1120mm wheel travel
Front Brakes
Single 320mm disc 4 piston caliper
Rear Brakes
Single 240mm disc 2 piston caliper
Front Tyre
100/80 -17
Rear Tyre
140/70 -17
Seat Height 800 mm
Dry-Weight
113.5 kg
Fuel Capacity
14.5 Litres
Consumption average
17 km/lit
Braking 60 - 0 / 100 - 0
13.6 m / 37.1 m
Standing ¼ Mile
14.5 sec / 144.2 km/h
Top Speed
168.2 km/h
Make Model
Aprilia AF1 125 Sintesi
Year
1988
Engine
Liquid cooled, two stroke, single cylinder Light alloy and barrel with GILNISIL surface coating
Capacity
124.7
Bore x Stroke 54 x 54.5 mm
Compression Ratio 15.1:1
Induction
28mm Dell'Orto carb
Ignition / Starting
Electronic / electric
Max Power
- (rear tyre 28.4 hp @ 10500 rpm)
Max Torque
1.9 km-m @ 10500 rpm
Transmission / Drive
6 Speed / chain
Front Suspension
38mm Upside-down forks. 120mm wheel travel
Rear Suspension
Aprilia Progressive System with hydraulic single shock-absorber, 1120mm wheel travel
Front Brakes
Single 320mm disc 4 piston caliper
Rear Brakes
Single 240mm disc 2 piston caliper
Front Tyre
100/80 -17
Rear Tyre
120/80 -17
Seat Height 800 mm
Dry-Weight / Wet-Weight
120 kg / 132 kg
Fuel Capacity
20 Litres
Consumption average
24.4 km/lit
Braking 60 - 0 / 100 - 0
13.2 m / 37.1 m
Standing ¼ Mile
15.3 sec / 136.8 km/h
Top Speed
166.2 km/h
Make Model
Aprilia AF1 125 Sintesi Sport
Year
1990
Engine
Liquid cooled, two stroke, single cylinder Light alloy and barrel with GILNISIL surface coating
Capacity
124.7
Bore x Stroke 54 x 54.5 mm
Compression Ratio 15.1:1
Induction
28mm Dell'Orto carb
Ignition / Starting
Electronic / electric
Max Power
- ( rear tyre 29.0 hp @ 10500 rpm)
Max Torque
1.9 kg-m @ 10000 rpm
Transmission / Drive
6 Speed / chain
Front Suspension
38mm upside-down forks. 120mm wheel travel
Rear Suspension
Aprilia Progressive System with hydraulic single shock-absorber, 1120mm wheel travel
Front Brakes
Single 320mm disc 4 piston caliper
Rear Brakes
Single 240mm disc 2 piston caliper
Front Tyre
100/80 -17
Rear Tyre
120/80 -17
Seat Height 800 mm
Dry-Weight / Wet-Weight
120 kg / 134 kg
Fuel Capacity
20 Litres
Consumption average
21.5 km/lit
Braking 60 - 0 / 100 - 0
13.3 m / 37.6 m
Standing ¼ Mile
15.1 sec / 141.8 km/h
Top Speed
169.1 km/h
Make Model
Aprilia AF1 125 Sports Pro
Year
1992
Engine
Liquid cooled, two stroke, single cylinder Light alloy and barrel with GILNISIL surface coating
Capacity
124.7
Bore x Stroke 54 x 54.5 mm
Compression Ratio 18.0:1
Induction
28mm Dell'Orto carb
Ignition / Starting
Electronic / electric
Max Power
33 hp @ 11000 rpm ( rear tyre 31.7 hp @ 11400 rpm)
Max Torque
2 kg-m @ 11300 rpm
Transmission / Drive
6 Speed / chain
Front Suspension
38mm upside-down forks. 120mm wheel travel
Rear Suspension
Aprilia Progressive System with hydraulic single shock-absorber, 1120mm wheel travel
Front Brakes
Single 320mm disc 4 piston caliper
Rear Brakes
Single 240mm disc 2 piston caliper
Front Tyre
Rear Tyre
Seat Height 800 mm
Dry-Weight / Wet-Weight
113 kg /1 28 kg
Fuel Capacity
20 Litres
Consumption average
19 km/lit
Braking 60 - 0 / 100 - 0
12.8 / 40 m
Standing ¼ Mile
14.5 sec / 143.7 km/h
Top Speed
174 km/h
Make Model
Aprilia RS 125 Extrema
Year
1993
Engine
Liquid cooled, single cylinder, two stroke, reed valves induction
Capacity
125
Bore x Stroke 54 x 54.5mm
Compression Ratio 14.5:1
Induction
Dell'Orto VHSB 34LD
Ignition / Starting
Electronic /
Max Power
34 hp 24.8 kW @ 11000 rpm
Max Torque
25 Nm @ 9000 rpm
Transmission / Drive
6 Speed / chain
Front Suspension
40mm Upside-down forks. 120mm wheel travel
Rear Suspension
Monoshock. 120mm wheel travel
Front Brakes
2x 320mm discs 4 piston calipers
Rear Brakes
Single 240mm disc 2 piston caliper
Front Tyre
110/70-17
Rear Tyre
150/60-17
Dry-Weight
115 kg
Fuel Capacity
11.5 Litres
Consumption average
19.5 km/lit
Braking 60 - 0 / 100 - 0
13.2 / 37.9 m
Standing ¼ Mile
14.3 sec / 148.0 km/h
Top Speed
171.3 km/h

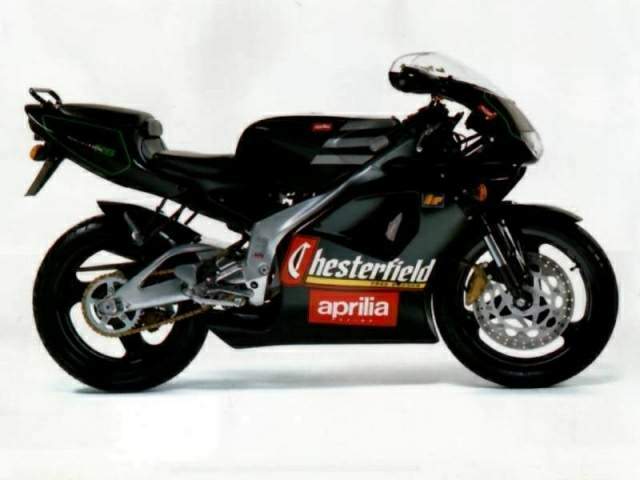

Make Model
Aprilia RS 125R
Year
1996
Engine
Liquid cooled, single cylinder, two stroke
Capacity
125
Bore x Stroke 54 x 54.5mm
Compression Ratio 12.5:1
Induction
Dell'Orto PHBH 28 BD
Ignition / Starting
Electronic with fixed spark advance CDI /
Max Power
34 hp 24.8 kW @ 11000 rpm
Max Torque
25 Nm @ 9000 rpm
Transmission / Drive
6 Speed / chain
Front Suspension
40mm Inverted forks in high tensile steel. 120 mm wheel travel.
Rear Suspension
Swinging fork with two asymmetric arms in Aluminium fusion with thin-walled monocoque. Single hydraulic shock absorber. 120mm wheel travel
Front Brakes
Single 320mm disc 4 piston caliper
Rear Brakes
Single 220mm disc 1 piston caliper
Front Tyre
110/70-17
Rear Tyre
150/60-17
Dry-Weight
115 kg
Fuel Capacity
14.5 Litres
Consumption average
37 mph
Standing ¼ Mile
15.8 sec / 144.8 km/h
Top Speed
149.7 km/h
Make Model
Aprilia RS 125
Year
2000
Engine
Liquid cooled, two-stroke, single cylinder
Capacity
125
Bore x Stroke 40.3 x 39mm
Compression Ratio 12.5:1
Induction
Dell'Orto PHBH 28 BD
Ignition / Starting
Electronic with fixed spark advance CDI /
Max Power
34 hp- 24.8 kW @ 11250 rpm
Max Torque
20 Nm @ 10000 rpm
Transmission / Drive
6 Speed / chain
Front Suspension
40mm Inverted forks in high tensile steel. 120 mm wheel travel.
Rear Suspension
Swinging fork with two asymmetric arms in Aluminium fusion with thin-walled monocoque. Single hydraulic shock absorber. 120mm wheel travel
Front Brakes
Single 320mm disc 4 piston caliper
Rear Brakes
Single 220mm disc 1 piston caliper
Front Tyre
110/70-17
Rear Tyre
150/60-17
Dry-Weight
114 kg
Fuel Capacity
14. Litres
Make Model
Aprilia RS 125
Year
2003
Engine
Liquid cooled, single cylinder, two stroke
Capacity
125
Bore x Stroke 40.3 x 39 mm
Compression Ratio 12.5:1
Induction
Dell'Orto PHBH 28 BD
Ignition / Starting
Electronic with fixed spark advance CDI
Max Power
34 hp- 24.8 kW @ 11250 rpm
Max Torque
20 Nm @ 10000 rpm
Transmission / Drive
6 Speed / chain
Front Suspension
Inverted 40mm forks in high tensile steel. 120 mm wheel travel
Rear Suspension
Swinging fork with two asymmetric arms in Aluminium fusion with thin-walled monocoque. Single hydraulic shock absorber. 120mm wheel travel
Front Brakes
Single 320mm disc 4 piston caliper
Rear Brakes
Single 220mm disc 1 piston caliper
Front Tyre
110/70-17
Rear Tyre
150/60-17
Dry-Weight
Fuel Capacity
14. Litres
Make Model
Aprilia RS 125
Year
2006
Engine
Liquid cooled, single cylinder, two stroke
Capacity
125
Bore x Stroke 54 x 54.4 mm
Compression Ratio 12.5:1
Induction
Dell'Orto PHBH 28 BD
Ignition / Starting
Electronic with fixed spark advance CDI / electric
Max Power
34 hp- 24.8 kW @ 11250 rpm
Max Torque
20 Nm @ 10000 rpm
Transmission / Drive
6 Speed / chain
Frame Cast aluminium, reinforced box section, sloping twin-spar frame.
Front Suspension
Upside down hydraulic fork, Ø 40 mm. 120mm wheel travel
Rear Suspension
Cast aluminium box section swingarm with asymmetric members. Hydraulic monoshock with adjustable spring preload. 120mm wheel travel
Front Brakes
Single 320mm disc 4 piston caliper
Rear Brakes
Single 220mm disc 2 piston caliper
Front Tyre
110/70-17
Rear Tyre
150/60-17
Seat Height 805 mm
Dry-Weight
Fuel Capacity
14. Litres
Make Model
Aprilia RS 125 Lorenzo Rep
Year
2007
Engine
Liquid cooled, single cylinder, two stroke
Capacity
125
Bore x Stroke 54 x 54.4 mm
Compression Ratio 12.5:1
Induction
Dell'Orto PHBH 28 BD
Ignition / Starting
Electronic with fixed spark advance CDI / electric
Max Power
34 hp- 24.8 kW @ 11250 rpm
Max Torque
20 Nm @ 10000 rpm
Transmission / Drive
6 Speed / chain
Frame Cast aluminium, reinforced box section, sloping twin-spar frame.
Front Suspension
Upside down hydraulic fork, Ø 40 mm. 120mm wheel travel
Rear Suspension
Cast aluminium box section swingarm with asymmetric members. Hydraulic monoshock with adjustable spring preload. 120mm wheel travel
Front Brakes
Single 320mm disc 4 piston caliper
Rear Brakes
Single 220mm disc 2 piston caliper
Front Tyre
110/70-17
Rear Tyre
150/60-17
Seat Height 805 mm
Dry-Weight
Fuel Capacity
14. Litres
Make Model
Aprilia RS 250
Year
1995
Engine
Liquid cooled, two stroke, 90° V twin
Capacity
249
Bore x Stroke 56 x 50.6 mm
Compression Ratio 13.2:1
Induction
Mikuni TM 34 SS flat sides
Ignition / Starting
CDI digital
Max Power
72.5 hp 52.9 kW @ 11900 rpm (rear tyre 65.5 hp @ 11100 rpm)
Max Torque
40 Nm @ 10750 rpm
Transmission / Drive
6 Speed / chain
Front Suspension
40mm Inverted with adjustable rebound and compression damping. 120mm wheel travel.
Rear Suspension
Magnesium alloy swingarm. Monoshock with resevoir, adjustable extension, compression and spring preloading. 130mm wheel travel.
Front Brakes
2x 298mm discs 4 piston calipers
Rear Brakes
Single 220mm disc 2 piston caliper
Front Tyre
120/60 -17
Rear Tyre
150/60 -17
Dry-Weight
140 kg
Fuel Capacity
19.5 Litres
Consumption average
34 mp/h
Braking 60 - 0 / 100 - 0
12.9 m / 36.8 m
Standing ¼ Mile
12.50 sec / 172.5 km/h
Top Speed
209.5 km/h
Make Model
Aprilia RS 250
Year
1998
Engine
Two stroke 90° V twin, liquid cooled
Capacity
249
Bore x Stroke 56 x 50.6 mm
Compression Ratio 13.2:1
Induction
2x 34mm Mikuni flat side carbs
Ignition / Starting
- /
Max Power
72.5 hp 52.9 kW @ 11900 rpm (rear tyre 64.3 hp @ 10400 rpm)
Max Torque
40 Nm @ 10750 rpm
Transmission / Drive
6 Speed / chain
Front Suspension
40mm Inverted with adjustable rebound and compression damping. 120mm wheel travel.
Rear Suspension
Magnesium alloy swingarm. Monoshock with resevoir, adjustable extension, compression and spring preloading. 130mm wheel travel.
Front Brakes
2x 298mm discs 4 piston calipers
Rear Brakes
Single 220mm disc 2 piston caliper
Front Tyre
120/60-17
Rear Tyre
150/60-17
Dry-Weight
140 kg
Fuel Capacity
19.5 Litres
Consumption average
15.3 km/lit
Braking 60 - 0 / 100 - 0
12.8 m / 37.7 m
Standing ¼ Mile
12.2 sec / 174.3 km/h
Top Speed
206.8 km/h
Make Model
Aprilia RS 250
Year
2001
Engine
Two stroke 90° V twin, liquid cooled
Capacity
249
Bore x Stroke 56 x 50.6 mm
Compression Ratio 13.2:1
Induction
2x 34mm Mikuni flat side carbs
Ignition / Starting
- /
Max Power
72.5 hp 52.9 kW @ 11900 rpm (rear tyre 64.3 hp @ 10400 rpm)
Max Torque
40 Nm @ 10750 rpm
Transmission / Drive
6 Speed / chain
Front Suspension
40mm Inverted with adjustable rebound and compression damping. 120mm wheel travel.
Rear Suspension
Magnesium alloy swingarm. Monoshock with resevoir, adjustable extension, compression and spring preloading. 130mm wheel travel.
Front Brakes
2x 298mm discs 4 piston calipers
Rear Brakes
Single 220mm disc 2 piston caliper
Front Tyre
120/60-17
Rear Tyre
150/60-17
Dry-Weight
140 kg
Fuel Capacity
19.5 Litres
Consumption average
15.3 km/lit
Braking 60 - 0 / 100 - 0
12.8 m / 37.7 m
Standing ¼ Mile
12.2 sec / 174.3 km/h
Top Speed
206.8 km/h
Make Model
Aprilia AF1 125
Year
1987
Engine
Liquid cooled, two stroke, single cylinder
Capacity
123
Bore x Stroke 54 x 54.5mm
Compression Ratio 15.5:1
Induction
28mm Dell'Orto carb
Ignition / Starting
Max Power
25.1 kg @10000 rpm
Max Torque
1.8 kg-m @ 8000 rpm
Transmission / Drive
6 Speed / chain
Front Suspension
Telescopic. 4-way anti-drive adjustable
Rear Suspension
Sebac monoshock
Front Brakes
Single 260mm disc
Rear Brakes
Single 240mm disc
Front Tyre
100/80-16
Rear Tyre
120/80-16
Dry-Weight / Wet-Weight
120 kg / 134.6 kg
Fuel Capacity
22.5 litres
Consumption average
22.7 km/lit
Braking 60 - 0 / 100 - 0
12.8 m / 39.9 m
Standing ¼ Mile
15.9 sec / 129.3 km/h
Top Speed
156.6 km/h
Make Model
Aprilia AF1 125 Futura
Year
1990
Engine
Liquid cooled, two stroke, single cylinder Light alloy and barrel with GILNISIL surface coating
Capacity
124.7
Bore x Stroke 54 x 54.5 mm
Compression Ratio 13.6:1
Induction
34mm Dell'Orto flat slide carb
Ignition / Starting
Electronic / electric
Max Power
27 hp @ 8800 rpm
Max Torque
2.0 kg-m @ 10000 rpm
Transmission / Drive
6 Speed / chain
Front Suspension
38mm upside down fork
Rear Suspension
Aprilia Progressive System with hydraulic single shock-absorber, 1120mm wheel travel
Front Brakes
Single 320mm disc 4 piston caliper
Rear Brakes
Single 240mm disc 2 piston caliper
Front Tyre
100/80 -17
Rear Tyre
140/70 -17
Seat Height 800 mm
Dry-Weight
113.5 kg
Fuel Capacity
14.5 Litres
Consumption average
17 km/lit
Braking 60 - 0 / 100 - 0
13.6 m / 37.1 m
Standing ¼ Mile
14.5 sec / 144.2 km/h
Top Speed
168.2 km/h
Make Model
Aprilia AF1 125 Sintesi
Year
1988
Engine
Liquid cooled, two stroke, single cylinder Light alloy and barrel with GILNISIL surface coating
Capacity
124.7
Bore x Stroke 54 x 54.5 mm
Compression Ratio 15.1:1
Induction
28mm Dell'Orto carb
Ignition / Starting
Electronic / electric
Max Power
- (rear tyre 28.4 hp @ 10500 rpm)
Max Torque
1.9 km-m @ 10500 rpm
Transmission / Drive
6 Speed / chain
Front Suspension
38mm Upside-down forks. 120mm wheel travel
Rear Suspension
Aprilia Progressive System with hydraulic single shock-absorber, 1120mm wheel travel
Front Brakes
Single 320mm disc 4 piston caliper
Rear Brakes
Single 240mm disc 2 piston caliper
Front Tyre
100/80 -17
Rear Tyre
120/80 -17
Seat Height 800 mm
Dry-Weight / Wet-Weight
120 kg / 132 kg
Fuel Capacity
20 Litres
Consumption average
24.4 km/lit
Braking 60 - 0 / 100 - 0
13.2 m / 37.1 m
Standing ¼ Mile
15.3 sec / 136.8 km/h
Top Speed
166.2 km/h
Make Model
Aprilia AF1 125 Sintesi Sport
Year
1990
Engine
Liquid cooled, two stroke, single cylinder Light alloy and barrel with GILNISIL surface coating
Capacity
124.7
Bore x Stroke 54 x 54.5 mm
Compression Ratio 15.1:1
Induction
28mm Dell'Orto carb
Ignition / Starting
Electronic / electric
Max Power
- ( rear tyre 29.0 hp @ 10500 rpm)
Max Torque
1.9 kg-m @ 10000 rpm
Transmission / Drive
6 Speed / chain
Front Suspension
38mm upside-down forks. 120mm wheel travel
Rear Suspension
Aprilia Progressive System with hydraulic single shock-absorber, 1120mm wheel travel
Front Brakes
Single 320mm disc 4 piston caliper
Rear Brakes
Single 240mm disc 2 piston caliper
Front Tyre
100/80 -17
Rear Tyre
120/80 -17
Seat Height 800 mm
Dry-Weight / Wet-Weight
120 kg / 134 kg
Fuel Capacity
20 Litres
Consumption average
21.5 km/lit
Braking 60 - 0 / 100 - 0
13.3 m / 37.6 m
Standing ¼ Mile
15.1 sec / 141.8 km/h
Top Speed
169.1 km/h
Make Model
Aprilia AF1 125 Sports Pro
Year
1992
Engine
Liquid cooled, two stroke, single cylinder Light alloy and barrel with GILNISIL surface coating
Capacity
124.7
Bore x Stroke 54 x 54.5 mm
Compression Ratio 18.0:1
Induction
28mm Dell'Orto carb
Ignition / Starting
Electronic / electric
Max Power
33 hp @ 11000 rpm ( rear tyre 31.7 hp @ 11400 rpm)
Max Torque
2 kg-m @ 11300 rpm
Transmission / Drive
6 Speed / chain
Front Suspension
38mm upside-down forks. 120mm wheel travel
Rear Suspension
Aprilia Progressive System with hydraulic single shock-absorber, 1120mm wheel travel
Front Brakes
Single 320mm disc 4 piston caliper
Rear Brakes
Single 240mm disc 2 piston caliper
Front Tyre
Rear Tyre
Seat Height 800 mm
Dry-Weight / Wet-Weight
113 kg /1 28 kg
Fuel Capacity
20 Litres
Consumption average
19 km/lit
Braking 60 - 0 / 100 - 0
12.8 / 40 m
Standing ¼ Mile
14.5 sec / 143.7 km/h
Top Speed
174 km/h
Make Model
Aprilia RS 125 Extrema
Year
1993
Engine
Liquid cooled, single cylinder, two stroke, reed valves induction
Capacity
125
Bore x Stroke 54 x 54.5mm
Compression Ratio 14.5:1
Induction
Dell'Orto VHSB 34LD
Ignition / Starting
Electronic /
Max Power
34 hp 24.8 kW @ 11000 rpm
Max Torque
25 Nm @ 9000 rpm
Transmission / Drive
6 Speed / chain
Front Suspension
40mm Upside-down forks. 120mm wheel travel
Rear Suspension
Monoshock. 120mm wheel travel
Front Brakes
2x 320mm discs 4 piston calipers
Rear Brakes
Single 240mm disc 2 piston caliper
Front Tyre
110/70-17
Rear Tyre
150/60-17
Dry-Weight
115 kg
Fuel Capacity
11.5 Litres
Consumption average
19.5 km/lit
Braking 60 - 0 / 100 - 0
13.2 / 37.9 m
Standing ¼ Mile
14.3 sec / 148.0 km/h
Top Speed
171.3 km/h
Make Model
Aprilia RS 125R
Year
1996
Engine
Liquid cooled, single cylinder, two stroke
Capacity
125
Bore x Stroke 54 x 54.5mm
Compression Ratio 12.5:1
Induction
Dell'Orto PHBH 28 BD
Ignition / Starting
Electronic with fixed spark advance CDI /
Max Power
34 hp 24.8 kW @ 11000 rpm
Max Torque
25 Nm @ 9000 rpm
Transmission / Drive
6 Speed / chain
Front Suspension
40mm Inverted forks in high tensile steel. 120 mm wheel travel.
Rear Suspension
Swinging fork with two asymmetric arms in Aluminium fusion with thin-walled monocoque. Single hydraulic shock absorber. 120mm wheel travel
Front Brakes
Single 320mm disc 4 piston caliper
Rear Brakes
Single 220mm disc 1 piston caliper
Front Tyre
110/70-17
Rear Tyre
150/60-17
Dry-Weight
115 kg
Fuel Capacity
14.5 Litres
Consumption average
37 mph
Standing ¼ Mile
15.8 sec / 144.8 km/h
Top Speed
149.7 km/h
Make Model
Aprilia RS 125
Year
2000
Engine
Liquid cooled, two-stroke, single cylinder
Capacity
125
Bore x Stroke 40.3 x 39mm
Compression Ratio 12.5:1
Induction
Dell'Orto PHBH 28 BD
Ignition / Starting
Electronic with fixed spark advance CDI /
Max Power
34 hp- 24.8 kW @ 11250 rpm
Max Torque
20 Nm @ 10000 rpm
Transmission / Drive
6 Speed / chain
Front Suspension
40mm Inverted forks in high tensile steel. 120 mm wheel travel.
Rear Suspension
Swinging fork with two asymmetric arms in Aluminium fusion with thin-walled monocoque. Single hydraulic shock absorber. 120mm wheel travel
Front Brakes
Single 320mm disc 4 piston caliper
Rear Brakes
Single 220mm disc 1 piston caliper
Front Tyre
110/70-17
Rear Tyre
150/60-17
Dry-Weight
114 kg
Fuel Capacity
14. Litres
Make Model
Aprilia RS 125
Year
2003
Engine
Liquid cooled, single cylinder, two stroke
Capacity
125
Bore x Stroke 40.3 x 39 mm
Compression Ratio 12.5:1
Induction
Dell'Orto PHBH 28 BD
Ignition / Starting
Electronic with fixed spark advance CDI
Max Power
34 hp- 24.8 kW @ 11250 rpm
Max Torque
20 Nm @ 10000 rpm
Transmission / Drive
6 Speed / chain
Front Suspension
Inverted 40mm forks in high tensile steel. 120 mm wheel travel
Rear Suspension
Swinging fork with two asymmetric arms in Aluminium fusion with thin-walled monocoque. Single hydraulic shock absorber. 120mm wheel travel
Front Brakes
Single 320mm disc 4 piston caliper
Rear Brakes
Single 220mm disc 1 piston caliper
Front Tyre
110/70-17
Rear Tyre
150/60-17
Dry-Weight
Fuel Capacity
14. Litres
Make Model
Aprilia RS 125
Year
2006
Engine
Liquid cooled, single cylinder, two stroke
Capacity
125
Bore x Stroke 54 x 54.4 mm
Compression Ratio 12.5:1
Induction
Dell'Orto PHBH 28 BD
Ignition / Starting
Electronic with fixed spark advance CDI / electric
Max Power
34 hp- 24.8 kW @ 11250 rpm
Max Torque
20 Nm @ 10000 rpm
Transmission / Drive
6 Speed / chain
Frame Cast aluminium, reinforced box section, sloping twin-spar frame.
Front Suspension
Upside down hydraulic fork, Ø 40 mm. 120mm wheel travel
Rear Suspension
Cast aluminium box section swingarm with asymmetric members. Hydraulic monoshock with adjustable spring preload. 120mm wheel travel
Front Brakes
Single 320mm disc 4 piston caliper
Rear Brakes
Single 220mm disc 2 piston caliper
Front Tyre
110/70-17
Rear Tyre
150/60-17
Seat Height 805 mm
Dry-Weight
Fuel Capacity
14. Litres
Make Model
Aprilia RS 125 Lorenzo Rep
Year
2007
Engine
Liquid cooled, single cylinder, two stroke
Capacity
125
Bore x Stroke 54 x 54.4 mm
Compression Ratio 12.5:1
Induction
Dell'Orto PHBH 28 BD
Ignition / Starting
Electronic with fixed spark advance CDI / electric
Max Power
34 hp- 24.8 kW @ 11250 rpm
Max Torque
20 Nm @ 10000 rpm
Transmission / Drive
6 Speed / chain
Frame Cast aluminium, reinforced box section, sloping twin-spar frame.
Front Suspension
Upside down hydraulic fork, Ø 40 mm. 120mm wheel travel
Rear Suspension
Cast aluminium box section swingarm with asymmetric members. Hydraulic monoshock with adjustable spring preload. 120mm wheel travel
Front Brakes
Single 320mm disc 4 piston caliper
Rear Brakes
Single 220mm disc 2 piston caliper
Front Tyre
110/70-17
Rear Tyre
150/60-17
Seat Height 805 mm
Dry-Weight
Fuel Capacity
14. Litres
Make Model
Aprilia RS 250
Year
1995
Engine
Liquid cooled, two stroke, 90° V twin
Capacity
249
Bore x Stroke 56 x 50.6 mm
Compression Ratio 13.2:1
Induction
Mikuni TM 34 SS flat sides
Ignition / Starting
CDI digital
Max Power
72.5 hp 52.9 kW @ 11900 rpm (rear tyre 65.5 hp @ 11100 rpm)
Max Torque
40 Nm @ 10750 rpm
Transmission / Drive
6 Speed / chain
Front Suspension
40mm Inverted with adjustable rebound and compression damping. 120mm wheel travel.
Rear Suspension
Magnesium alloy swingarm. Monoshock with resevoir, adjustable extension, compression and spring preloading. 130mm wheel travel.
Front Brakes
2x 298mm discs 4 piston calipers
Rear Brakes
Single 220mm disc 2 piston caliper
Front Tyre
120/60 -17
Rear Tyre
150/60 -17
Dry-Weight
140 kg
Fuel Capacity
19.5 Litres
Consumption average
34 mp/h
Braking 60 - 0 / 100 - 0
12.9 m / 36.8 m
Standing ¼ Mile
12.50 sec / 172.5 km/h
Top Speed
209.5 km/h
Make Model
Aprilia RS 250
Year
1998
Engine
Two stroke 90° V twin, liquid cooled
Capacity
249
Bore x Stroke 56 x 50.6 mm
Compression Ratio 13.2:1
Induction
2x 34mm Mikuni flat side carbs
Ignition / Starting
- /
Max Power
72.5 hp 52.9 kW @ 11900 rpm (rear tyre 64.3 hp @ 10400 rpm)
Max Torque
40 Nm @ 10750 rpm
Transmission / Drive
6 Speed / chain
Front Suspension
40mm Inverted with adjustable rebound and compression damping. 120mm wheel travel.
Rear Suspension
Magnesium alloy swingarm. Monoshock with resevoir, adjustable extension, compression and spring preloading. 130mm wheel travel.
Front Brakes
2x 298mm discs 4 piston calipers
Rear Brakes
Single 220mm disc 2 piston caliper
Front Tyre
120/60-17
Rear Tyre
150/60-17
Dry-Weight
140 kg
Fuel Capacity
19.5 Litres
Consumption average
15.3 km/lit
Braking 60 - 0 / 100 - 0
12.8 m / 37.7 m
Standing ¼ Mile
12.2 sec / 174.3 km/h
Top Speed
206.8 km/h
Make Model
Aprilia RS 250
Year
2001
Engine
Two stroke 90° V twin, liquid cooled
Capacity
249
Bore x Stroke 56 x 50.6 mm
Compression Ratio 13.2:1
Induction
2x 34mm Mikuni flat side carbs
Ignition / Starting
- /
Max Power
72.5 hp 52.9 kW @ 11900 rpm (rear tyre 64.3 hp @ 10400 rpm)
Max Torque
40 Nm @ 10750 rpm
Transmission / Drive
6 Speed / chain
Front Suspension
40mm Inverted with adjustable rebound and compression damping. 120mm wheel travel.
Rear Suspension
Magnesium alloy swingarm. Monoshock with resevoir, adjustable extension, compression and spring preloading. 130mm wheel travel.
Front Brakes
2x 298mm discs 4 piston calipers
Rear Brakes
Single 220mm disc 2 piston caliper
Front Tyre
120/60-17
Rear Tyre
150/60-17
Dry-Weight
140 kg
Fuel Capacity
19.5 Litres
Consumption average
15.3 km/lit
Braking 60 - 0 / 100 - 0
12.8 m / 37.7 m
Standing ¼ Mile
12.2 sec / 174.3 km/h
Top Speed
206.8 km/h
